SHP099 is a potent, selective, orally available SHP2 inhibitor with an IC₅₀ of 70 nM^[1].

IC50: 70 nM (SHP2)^[1]

The X-ray co-crystal for SHP099 with SHP2 reveals a new interaction with the basic amine and the Phe113 backbone carbonyl. SHP099 shows inhibition of cell proliferation (KYSE-520 model) with an IC₅₀ of 1.4 μM. SHP099 shows high solubility and high permeability with no apparent efflux in Caco-2 cells^[1]. SHP099 concurrently binds to the interface of the N-terminal SH2, C-terminal SH2, and protein tyrosine phosphatase domains, thus inhibiting SHP2 activity through an allosteric mechanism. SHP099 suppresses RAS–ERK signalling to inhibit the proliferation of receptor-tyrosine-kinase-driven human cancer cells^[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

After a single doses of 30 and 100 mg/kg (red and blue lines, respectively), dose-dependent exposure and modulation of the pharmacodynamic marker p-ERK is observed in the xenografts. A daily oral dose of 10 or 30 mg/kg yield 19% and 61% tumor growth inhibition, respectively. Tumor stasis is achieved at 100 mg/kg^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

352.26

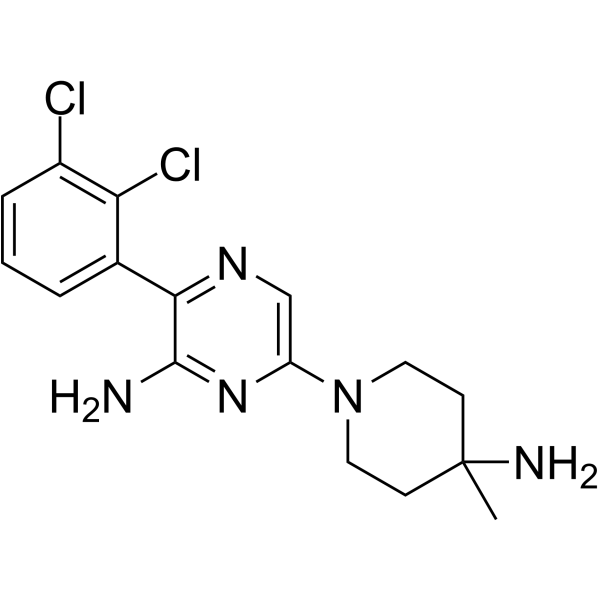

C₁₆H₁₉Cl₂N₅

1801747-42-1

Room temperature in continental US; may vary elsewhere.

DMSO : 12 mg/mL (34.07 mM; Need ultrasonic)

H₂O : 1 mg/mL (2.84 mM; Need ultrasonic)

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 0.5% CMC-Na/saline water

  Solubility: 10 mg/mL (28.39 mM); Suspended solution; Need ultrasonic
• 2.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

  此方案可获得 ≥ 1.2 mg/mL (3.41 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 3.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

  此方案可获得 ≥ 1.2 mg/mL (3.41 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 4.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 1.2 mg/mL (3.41 mM); Clear solution

  此方案可获得 ≥ 1.2 mg/mL (3.41 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 12.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• 5.

  请依序添加每种溶剂： 5% DMSO    40% PEG300    5% Tween-80    50% saline

  Solubility: ≥ 0.67 mg/mL (1.90 mM); Clear solution
• 6.

  请依序添加每种溶剂： 5% DMSO    95% (20% SBE-β-CD in saline)

  Solubility: ≥ 0.67 mg/mL (1.90 mM); Clear solution
• 7.

  请依序添加每种溶剂： 1% DMSO    99% saline

  Solubility: ≥ 0.13 mg/mL (0.37 mM); Clear solution

• [1]. Garcia Fortanet J, et al. Allosteric Inhibition of SHP2: Identification of a Potent, Selective, and Orally Efficacious Phosphatase Inhibitor. J Med Chem. 2016 Sep 8;59(17):7773-82.

  [2]. Chen YN, et al. Allosteric inhibition of SHP2 phosphatase inhibits cancers driven by receptor tyrosine kinases. Nature. 2016 Jul 7;535(7610):148-52.

The inhibition of SHP2 from the tested compounds (SHP099) concentrations varying from 0.003-100 μM is monitored using an assay in which 0.5 nM of SHP2 is incubated with of 0.5 μM of peptide IRS1_pY1172(dPEG8)pY1222. After 30-60 minutes incubation at the surrogate substrate, DiFMUP is added to the reaction and incubated at 25 °C for 30 minutes. The reaction is then quenched by the addition of 5 μL of a 160 μM solution of bpV(Phen). The fluorescence signal is monitored using a microplate reader using excitation and emission wavelengths of 340 nm and 450 nm, respectively^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

Cells are plated onto 96-well plates in 100 μL medium. SHP099 with various concentrations (1.25, 2.5, 5, 10, 20 μM) are added 24 h after cell plating. At day 5, 50 μL Celltiter-Glo reagent is added, and the luminescent signal is determined^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Garcia Fortanet J, et al. Allosteric Inhibition of SHP2: Identification of a Potent, Selective, and Orally Efficacious Phosphatase Inhibitor. J Med Chem. 2016 Sep 8;59(17):7773-82.

  [2]. Chen YN, et al. Allosteric inhibition of SHP2 phosphatase inhibits cancers driven by receptor tyrosine kinases. Nature. 2016 Jul 7;535(7610):148-52.
