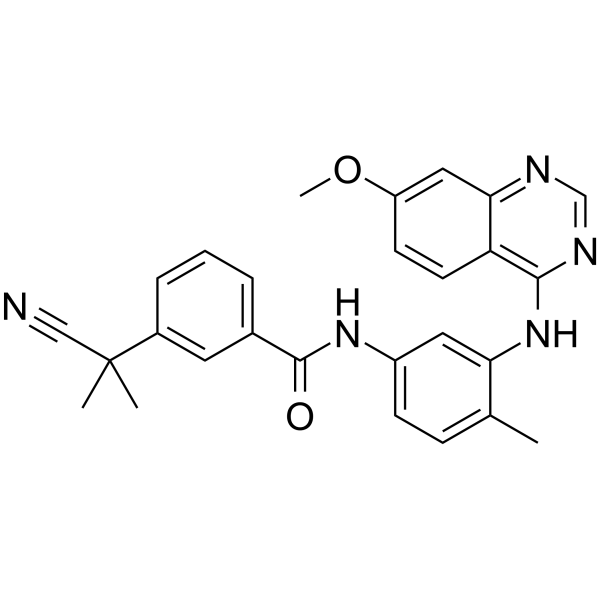

AZ304 is an ATP-competitive dual BRAF kinase inhibitor, potently inhibits wild type BRAF, V600E mutant BRAF and wild type CRAF, with IC₅₀s of 79 nM, 38 nM and 68 nM, respectively. AZ304 also has significant effect on other kinases, such as p38 (IC₅₀, 6 nM), CSF1R (IC₅₀, 35 nM). Anti-tumor activity^[1].

AZ304 (1 nM-100 μM) potently reduces ERK phosphorylation (p-ERK), with a mean EC₅₀ of 65 nM in the V600E mutant BRAF containing melanoma cell line A375, and EC₅₀s of 52 nM, 60 nM in the wild type BRAF melanoma cell line SK-MEL-31 with and without EGF^[1]. AZ304 also potently inhibits p-p38 in both BRAF genetic statuses cell lines^[1].
AZ304 (0, 0.1, 1, 10, 100 μM, 48 and 72 hours) dose-dependently inhibits the growth of RKO, HT-29, DiFi, and Caco-2, with GI₅₀s of 4.539 μM, 3.896 μM, 4.987 μM, 1.763 μM (48 hours) and 0.5032 μM, 0.3887 μM, 0.6354 μM, 0.3772 μM (72 hours), respectively^[1].
AZ304 (2 μM, 36 and 48 hours) decreases BRAF, p-ERK, p-AKT and p-mTOR levels, increases p-EGFR in both BRAF V600E mutant and BRAF wild type cells. AZ304 down-regulates p-EGFR, inhibits p-ERK, more potently suppresses BRAF, ERK, AKT and mTOR signalling pathways in combination with C225^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

451.52

C₂₇H₂₅N₅O₂

942507-42-8

Room temperature in continental US; may vary elsewhere.

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	6 months
	-20°C	1 month

In Vitro:

DMSO : 125 mg/mL (276.84 mM; Need ultrasonic)

*

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

In Vivo:

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2.08 mg/mL (4.61 mM); Clear solution

  此方案可获得 ≥ 2.08 mg/mL (4.61 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: 2.08 mg/mL (4.61 mM); Suspended solution; Need ultrasonic

  此方案可获得 2.08 mg/mL (4.61 mM) 的均匀悬浊液，悬浊液可用于口服和腹腔注射。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 3.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 2.08 mg/mL (4.61 mM); Clear solution

  此方案可获得 ≥ 2.08 mg/mL (4.61 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 20.8 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Ma R, et al. AZ304, a novel dual BRAF inhibitor, exerts anti-tumour effects in colorectal cancer independently of BRAF genetic status. Br J Cancer. 2018 May;118(11):1453-1463.
