Voxtalisib (XL765) is a potent PI3K inhibitor, which has a similar activity toward class I PI3K (IC₅₀s=39, 113, 9 and 43 nM for p110α, p110β, p110γ and p110δ, respectively), also inhibits DNA-PK (IC₅₀=150 nM) and mTOR (IC₅₀=157 nM). Voxtalisib (XL765) inhibits mTORC1 and mTORC2 with IC₅₀s of 160 and 910 nM, respectively.

Voxtalisib (XL765) displays potent inhibitory activity against class I PI3K isoforms p110α, p110β, p110δ, and p120γ, with IC₅₀s of 39, 110, 43, and 9 nM, respectively. The IC₅₀ value for inhibition of PI3Kα by Voxtalisib is determined at various concentrations of ATP, revealing Voxtalisib be an ATP-competitive inhibitor with an equilibrium inhibition constant (K_i) value of 13 nM. Voxtalisib also inhibits mTOR (IC₅₀s of 160 and 910 nM for mTORC1 and mTORC2, respectively) in an immune-complex kinase assay and the PI3K-related kinase DNA-PK (IC₅₀ value of 150 nM). In contrast, Voxtalisib (XL765) has relatively weak inhibitory activity toward the class III PI3K vacuolar sorting protein 34 (VPS34; IC₅₀ value of ~9.1 μM). Consistent with its inhibitory activity against purified PI3K proteins, SAR245409 inhibits EGF-induced PIP₃ production in PC-3 and MCF7 cells with IC₅₀s of 290 and 170 nM, respectively. The ability of Voxtalisib to inhibit phosphorylation of key signaling proteins downstream of PI3K is examined by assessing its effects on EGF-stimulated phosphorylation of AKT and on nonstimulated phosphorylation of S6 in PC-3 cells by cell-based ELISA. Voxtalisib inhibits these activities with IC₅₀s of 250 and 120 nM, respectively. In MCF7 and PC-3 cells, Voxtalisib inhibits proliferation (monitored by BrdUrd incorporation) with IC₅₀s of 1,070 and 1,840 nM, respectively. To further characterize the effects of Voxtalisib on tumor cell growth, an assay monitoring the anchorage-independent growth of PC-3 and MCF7 cells in soft agar over a 14-day period is used. SAR245409 inhibits colony growth with an IC₅₀ value of 270 nM in PC-3 cells and 230 nM in MCF7 cells^[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

Oral administration of Voxtalisib (XL765) causes a dose-dependent decrease of phosphorylation of AKT, p70S6K, and S6 in the tumors, reaching a maximum of 84% inhibition of S6 phosphorylation at 30 mg/kg at 4 hours. The dose-response relationships derive from the 4 hours time point predict 50% inhibition of AKT, p70S6K, and S6 phosphorylation to occur at doses of 19 mg/kg (pAKT^T308 and pAKT^S473), 51 mg/kg (p-p70S6K), and 18 mg/kg (pS6). Inhibition of AKT, p70S6K, and S6 phosphorylation in MCF7 tumors following a 30 mg/kg dose of Voxtalisib is maximal at 4 hours, reaching 61% to 84%; however, the level of inhibition decreases to 0% to 42% by 24 hours, and minimal or no inhibition is evident by 48 hours. Following a 100 mg/kg dose of Voxtalisib, inhibition is also maximal at 4 hours (52%-75%)^[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

270.29

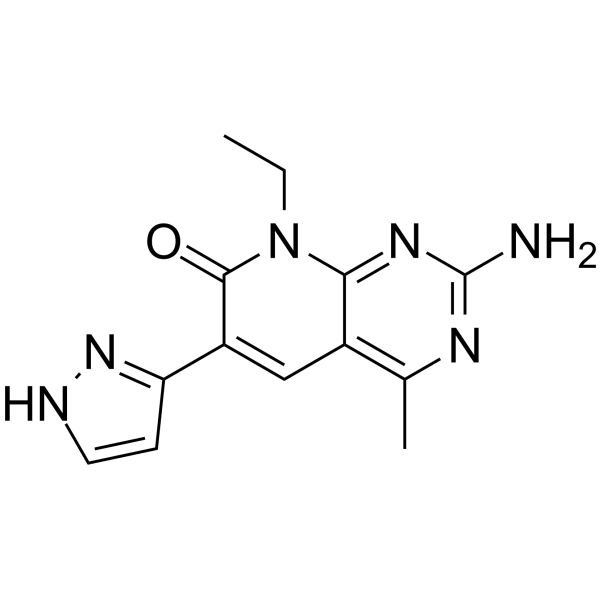

C₁₃H₁₄N₆O

934493-76-2

Room temperature in continental US; may vary elsewhere.

DMSO : 10 mg/mL (37.00 mM; Need ultrasonic)

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 1 mg/mL (3.70 mM); Clear solution

  此方案可获得 ≥ 1 mg/mL (3.70 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 10.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 1 mg/mL (3.70 mM); Clear solution

  此方案可获得 ≥ 1 mg/mL (3.70 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 10.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 3.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 1 mg/mL (3.70 mM); Clear solution

  此方案可获得 ≥ 1 mg/mL (3.70 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 10.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Garcia-Echeverria C, et al. Drug discovery approaches targeting the PI3K/Akt pathway in cancer. Oncogene. 2008 Sep 18;27(41):5511-26.

  [2]. Yu P, et al. Characterization of the activity of the PI3K/mTOR inhibitor XL765 (SAR245409) in tumor models with diverse genetic alterations affecting the PI3K pathway. Mol Cancer Ther. 2014 May;13(5):1078-91.

Cellular proliferation is assessed using the Cell Proliferation ELISA, Bromodeoxyuridine Chemiluminescence Kit. Cytotoxicity is assessed using the ATP Bioluminescence Assay as follows: PC-3, MCF7, A549, LS174T, MDA-MB-468, U87-MG, and OVCAR-3 cells are plated at densities of 7×10³, 1.5×10⁴, 6×10³, 7×10³, 7×10³, 6×10³, 1.5×10⁴ cells per well, respectively, onto 96-well microtiter plates in culture medium, incubated at 37°C, 5% CO₂ for 18 hours, and then treated with a serial dilution of compound in medium containing a final concentration of 0.3% DMSO. Triplicate wells are used for each compound concentration. Control wells receive 0.3% DMSO in media. Cultures are incubated at 37°C, 5% CO₂ for an additional 24 hours and cells are then assayed for viability using the ViaLight HS Kit^[2].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

Mice^[2]
In vivo efficacy studies are performed in athymic nude mice. Tumor cells are cultured in DMEM supplemented with 10% FBS (20% for PC-3 and OVCAR-3 cells), Penicillin-Streptomycin, and nonessential amino acids at 37°C in a humidified 5% CO₂ atmosphere. On day 0, cells are harvested by brief trypsinization, and 1 to 5×10⁶ cells in 0.1 mL ice-cold Hanks Balanced Salt Solution are implanted subcutaneously (OVCAR-3) or intradermally (MCF7 and U-87 MG) into the hind flank of female athymic nude mice. In the case of the MCF7 model, an estrogen pellet (IRA) is implanted subcutaneously at the nape of neck at the time of tumor cell implantation. A total of 3×10⁶ PC-3 cells are similarly harvested and implanted subcutaneously into the hind-flank of 5- to 8-week-old male nude mice. Tumor growth is monitored weekly with calipers until staging and dose initiation. During the dosing period, body and tumor weights are assessed. Voxtalisib (XL-765) is formulated in sterile water/10 mM HCl or water and administered at the indicated doses and regimens by oral gavage at a dose volume of 10 mL/kg.

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Garcia-Echeverria C, et al. Drug discovery approaches targeting the PI3K/Akt pathway in cancer. Oncogene. 2008 Sep 18;27(41):5511-26.

  [2]. Yu P, et al. Characterization of the activity of the PI3K/mTOR inhibitor XL765 (SAR245409) in tumor models with diverse genetic alterations affecting the PI3K pathway. Mol Cancer Ther. 2014 May;13(5):1078-91.
