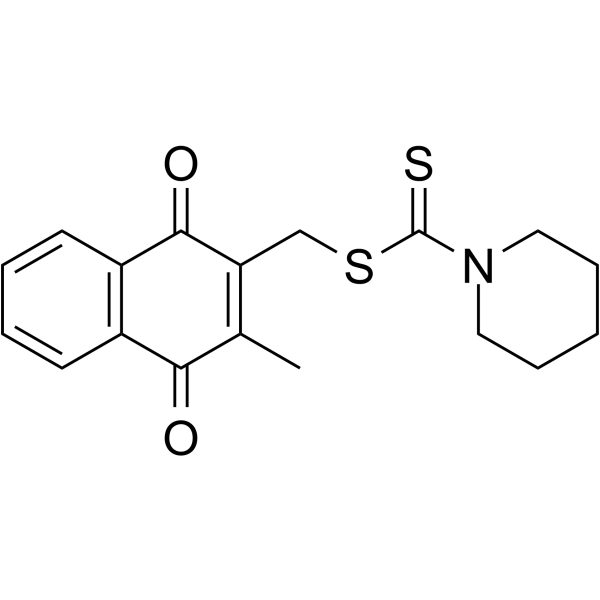

PKM2-IN-1 is a pyruvate kinase M2 (PKM2) inhibitor with an IC₅₀ of 2.95 μM.

IC50: 2.95 μM (PKM2)^[1]

PKM2-IN-1 is a pyruvate kinase M2 (PKM2) inhibitor with an IC₅₀ of 2.95±0.53 μM. Results show that most of the tested compounds exhibit some degree of PKM2 inhibition and some compounds, such as PKM2-IN-1 (compound 3k) and 6d, display more potent activity than the positive control shikonin. The representative compounds PKM2-IN-1, 6d display dose-dependent inhibition of PKM2 with less inhibition of PKM1 and PKL like shikonin. Among all tested compounds, the most potent compounds are 3a, PKM2-IN-1 and 3r, which exhibit IC₅₀ values against HCT116 and Hela cells ranging from 0.39 to 0.41 μM, 0.18 to 0.29 μM and 0.18 to 0.38 μM, respectively^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

345.48

C₁₈H₁₉NO₂S₂

94164-88-2

Room temperature in continental US; may vary elsewhere.

Powder	-20°C	3 years
	4°C	2 years
In solvent	-80°C	6 months
	-20°C	1 month

In Vitro:

DMSO : 320 mg/mL (926.25 mM; Need ultrasonic)

*

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

In Vivo:

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: 8 mg/mL (23.16 mM); Suspended solution; Need ultrasonic

  此方案可获得 8 mg/mL (23.16 mM) 的均匀悬浊液，悬浊液可用于口服和腹腔注射。

  以 1 mL 工作液为例，取 100 μL 80.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 8 mg/mL (23.16 mM); Clear solution

  此方案可获得 ≥ 8 mg/mL (23.16 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 80.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明
• 3.

  请依序添加每种溶剂： 10% DMSO    90% corn oil

  Solubility: ≥ 8 mg/mL (23.16 mM); Clear solution

  此方案可获得 ≥ 8 mg/mL (23.16 mM，饱和度未知) 的澄清溶液，此方案不适用于实验周期在半个月以上的实验。

  以 1 mL 工作液为例，取 100 μL 80.0 mg/mL 的澄清 DMSO 储备液加到 900 μL玉米油中，混合均匀。

• [1]. Ning X, et al. Discovery of novel naphthoquinone derivatives as inhibitors of the tumor cell specific M2 isoform of pyruvate kinase. Eur J Med Chem. 2017 Sep 29;138:343-352.

Cell lines (HCT116, Hela, H1299, BEAS-2B) are cultured in RPMI 1640 containing 9% fetal bovine serum (FBS) at 37°C in 5% CO₂. Cell viability is detected with the MTS assay according to the manufacturer’s instructions. Briefly, 5000 cells in per well are plated in 96-well plates. After incubated for 12 h, the cells are treated with different concentration of tested compound (including PKM2-IN-1) or DMSO (as negative control) for 48 h. Then 20 μL MTS is added in per well and incubated at 37°C for 3 h. Absorbance of each well is determined by a microplate reader at a 490 nm wavelength. The IC₅₀ values are calculated using Prism Graphpad software of the triplicate experiment^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

• [1]. Ning X, et al. Discovery of novel naphthoquinone derivatives as inhibitors of the tumor cell specific M2 isoform of pyruvate kinase. Eur J Med Chem. 2017 Sep 29;138:343-352.
