SCR7 pyrazine is a DNA ligase IV inhibitor that blocks nonhomologous end-joining (NHEJ) in a ligase IV-dependent manner. SCR7 pyrazine is also a CRISPR/Cas9 enhancer which increases the efficiency of Cas9-mediated homology-directed repair (HDR). SCR7 pyrazine induces cell apoptosis and has anticancer activity^[1][2].

DNA Ligase IV^[1]
CRISPR/Cas9^[2]

SCR7 pyrazine (20-100 μM; 24 hours; MCF7 cells) treatment interferes with NHEJ in cells, leading to accumulation of unrepaired double-strand breaks (DSBs)^[1].
SCR7 pyrazine treatment shows a dose-dependent decrease in cell proliferation with IC₅₀ values of 40 μM, 34 μM, 44 μM, 8.5 μM, 120 μM, 10 μM and 50 μM for MCF7, A549, HeLa, T47D, A2780, HT1080 and Nalm6 cells, respectively^[1].
In MCF7 cells, SCR7 pyrazine (20, 40 μM) treatment increases phosphorylation of ATM and activates p53, decreases MDM2, BCL2, resulting in activation of proapoptotic proteins, PUMA and BAX. And the shorter fragments of MCL1, PARP1, Caspase 3, and Caspase 9 cleavage are upregulated in a dose-dependent manner^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

SCR7 pyrazine (10 mg/kg; intraperitoneal injection; six doses; BALB/c mice) treatment significantly reduces breast adenocarcinoma-induced tumor and increases lifespan^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

332.38

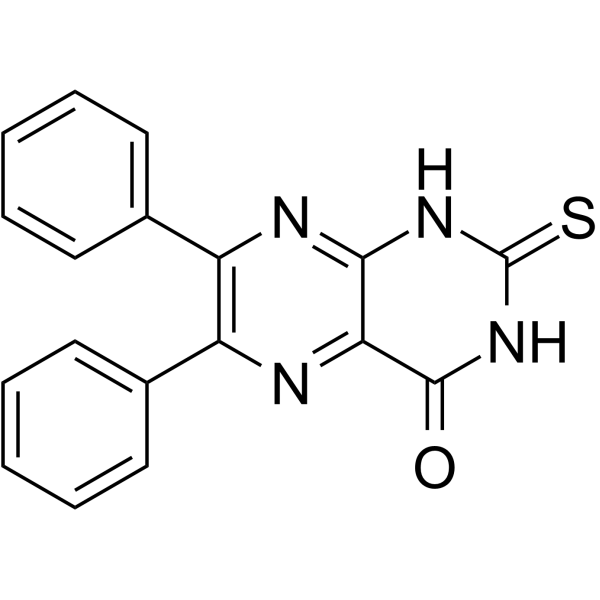

C₁₈H₁₂N₄OS

14892-97-8

SCR7 吡嗪

Room temperature in continental US; may vary elsewhere.

DMSO : 100 mg/mL (300.86 mM; Need ultrasonic)

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2.5 mg/mL (7.52 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (7.52 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• 2.

  请依序添加每种溶剂： 10% DMSO    90% (20% SBE-β-CD in saline)

  Solubility: ≥ 2.5 mg/mL (7.52 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (7.52 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 900 μL 20% 的 SBE-β-CD 生理盐水水溶液中，混合均匀。

  将 2 g 磺丁基醚 β-环糊精加入 5 mL 生理盐水中，再用生理盐水定容至 10 mL，完全溶解，澄清透明

• [1]. Srivastava M, et al. An inhibitor of nonhomologous end-joining abrogates double-strand break repair and impedes cancer progression. Cell. 2012 Dec 21;151(7):1474-87.

  [2]. Lin C, et al. Increasing the Efficiency of CRISPR/Cas9-mediated Precise Genome Editing of HSV-1 Virus in Human Cells. Sci Rep. 2016 Oct 7;6:34531.

SCR7 is an unstable form that can be autocyclized into a stable form SCR7 pyrazine. SCR7 pyrazine is a DNA ligase IV inhibitor that blocks nonhomologous end-joining (NHEJ) in a ligase IV-dependent manner. SCR7 pyrazine is also a CRISPR/Cas9 enhancer which increases the efficiency of Cas9-mediated homology-directed repair (HDR). SCR7 pyrazine induces cell apoptosis and has anticancer activity^[1][2].

SCR7 (SCR7 pyrazine; 20-100 μM; 24 hours; MCF7 cells) treatment interferes with NHEJ in cells, leading to accumulation of unrepaired double-strand breaks (DSBs)^[1].
SCR7 (SCR7 pyrazine) treatment shows a dose-dependent decrease in cell proliferation with IC₅₀ values of 40 μM, 34 μM, 44 μM, 8.5 μM, 120 μM, 10 μM and 50 μM for MCF7, A549, HeLa, T47D, A2780, HT1080 and Nalm6 cells, respectively^[1].
In MCF7 cells, SCR7 (SCR7 pyrazine; 20, 40 μM) treatment increases phosphorylation of ATM and activates p53, decreases MDM2, BCL2, resulting in activation of proapoptotic proteins, PUMA and BAX. And the shorter fragments of MCL1, PARP1, Caspase 3, and Caspase 9 cleavage are upregulated in a dose-dependent manner^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

SCR7 (SCR7 pyrazine; 10 mg/kg; intraperitoneal injection; six doses; BALB/c mice) treatment significantly reduces breast adenocarcinoma-induced tumor and increases lifespan^[1].

上海金畔生物科技有限公司 has not independently confirmed the accuracy of these methods. They are for reference only.

334.39

C₁₈H₁₄N₄OS

1533426-72-0

Room temperature in continental US; may vary elsewhere.

DMSO : ≥ 45 mg/mL (134.57 mM)

* “≥” means soluble, but saturation unknown.

请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液；一旦配成溶液，请分装保存，避免反复冻融造成的产品失效。
储备液的保存方式和期限：-80°C, 6 months; -20°C, 1 month。-80°C 储存时，请在 6 个月内使用，-20°C 储存时，请在 1 个月内使用。

请根据您的实验动物和给药方式选择适当的溶解方案。以下溶解方案都请先按照 In Vitro 方式配制澄清的储备液，再依次添加助溶剂：

——为保证实验结果的可靠性，澄清的储备液可以根据储存条件，适当保存；体内实验的工作液，建议您现用现配，当天使用； 以下溶剂前显示的百
分比是指该溶剂在您配制终溶液中的体积占比；如在配制过程中出现沉淀、析出现象，可以通过加热和/或超声的方式助溶

• 1.

  请依序添加每种溶剂： 10% DMSO    40% PEG300    5% Tween-80    45% saline

  Solubility: ≥ 2.5 mg/mL (7.48 mM); Clear solution

  此方案可获得 ≥ 2.5 mg/mL (7.48 mM，饱和度未知) 的澄清溶液。

  以 1 mL 工作液为例，取 100 μL 25.0 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀；向上述体系中加入50 μL Tween-80，混合均匀；然后继续加入 450 μL生理盐水定容至 1 mL。

  将 0.9 g 氯化钠，完全溶解于 100 mL ddH₂O 中，得到澄清透明的生理盐水溶液

• [1]. Srivastava M, et al. An inhibitor of nonhomologous end-joining abrogates double-strand break repair and impedes cancer progression. Cell. 2012 Dec 21;151(7):1474-87.

  [2]. Lin C, et al. Increasing the Efficiency of CRISPR/Cas9-mediated Precise Genome Editing of HSV-1 Virus in Human Cells. Sci Rep. 2016 Oct 7;6:34531.

  [3]. Supriya V Vartak, et al. Autocyclized and Oxidized Forms of SCR7 Induce Cancer Cell Death by Inhibiting Nonhomologous DNA End Joining in a Ligase IV Dependent Manner. FEBS J. 2018 Nov;285(21):3959-3976.
